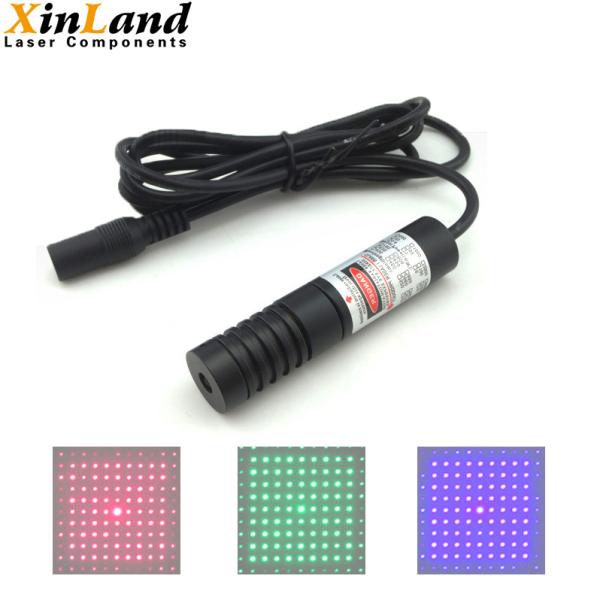

81 Point Gypsophila Fractional 650nm Laser Module With Insulating Varnish

Name: 81 Point Gypsophila Fractional 650nm Laser Module With Insulating Varnish
Brand: xinland
Price: 1 USD

81 Point Gypsophila Fractional 650nm Laser Module With Insulating Varnish Manufactures

Brand Name : xinland

Model Number : DOE Laser Module

Certification : CE

Place of Origin : China

MOQ : 10pcs

Price : Negotiated

Payment Terms : T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50000pcs per months

Delivery Time : 5-8 work days

Packaging Details : 1pc carton

Type : 81 Point Gypsophila Square Laser

Light Source : Red/Green/Blue

Output Power : 50mw/100mw Customizable

Wavelength : 650nm/520nm/450nm

Shell Material : Aluminium with insulating varnish

Adjustment Mode : Manual external adjustment

Contact Now

81 Point Square Gypsophila Fractional Laser Module with Bright and Soft Laser Light

Product Details:

Wavelength	Output Power	Voltage(V)	Electric Current	Size
650nm	100mw	DC 2.8-5.2V	<500mA	Φ16x70mm
520nm	50mw	DC 2.8-5.2V	<500mA	Φ16x70mm
450nm	100mw	DC 2.8-5.2V	<500mA	Φ16x70mm

Light Spot Details:

At 25cm: side length 2.4cm, point spacing 0.3cm

At 50 cm: side length 4.8 cm, point spacing 0.6 cm

At 100 cm: side length 9.6 cm, point spacing 1.2 cm

Installation height 0-10 meters

Wavelength, Output Power, Voltage and Size Customizable

Other parameters:

Working voltage: DC 2.8V to 5.2V (customizable)

Dimensions: 16*70mm (customizable)

High-quality high-temperature resistant DC plug cable is 1.2 meters long, and the cable length can be customized

The module is filled with heat-dissipating silica gel and AB glue to fully dissipate heat and resist shock and fall

81 Point Gypsophila Fractional 650nm Laser Module With Insulating Varnish

Warranty:

we offer one year limited warranty for our products. Damage due to misuse, Ill treatment and unauthorized modifications will beyond our warranty.

Payment Method:

PayPal ( PayPal fee should be afforded at buyer's side), Bank Transfer, Western Union, and Money Gram.

Shipping Method:

DHL/FEDEX/UPS/EMS/TNT Express service; Post Service
