Solid Circle Plane Homogenization DOE Laser Module 450nm

Name: Solid Circle Plane Homogenization DOE Laser Module 450nm
Brand: xinland
Price: 1 USD

Solid Circle Plane Homogenization DOE Laser Module 450nm Manufactures

Brand Name : xinland

Model Number : DOE Laser Module

Certification : CE

Place of Origin : China

MOQ : 10pcs

Price : Negotiated

Payment Terms : T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50000pcs per months

Delivery Time : 5-8 work days

Packaging Details : 1pc carton

Laser Type : 53.1° 54.02° Solid Circle Laser

Lens Angle : 53.1° 54.02° Customizable

Output Power : 50mw/100mw Customizable

Light Source : Red/Green/Blue

Wavelength : 650nm/520nm/450nm

Optical Lens : Grating Sheet

Contact Now

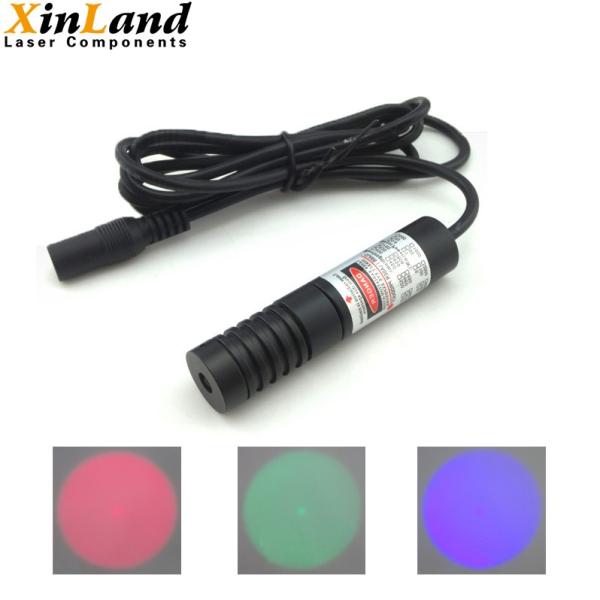

53.1° 54.02° Lens Solid Circle Plane Homogenization Effect Red Green Blue Laser Module

Product Details:

Wavelength	Output Power	Voltage(V)	Electric Current	Size
650nm	100mw	DC 2.8-5.2V	<500mA	Φ16x70mm
520nm	50mw	DC 2.8-5.2V	<500mA	Φ16x70mm
450nm	100mw	DC 2.8-5.2V	<500mA	Φ16x70mm

Light Spot Details:

Lens angle: 53.1°

At 25 cm: 250mm in diameter

At 50 cm: 500mm in diameter

At 100 cm: 1000mm in diameter

Lens angle: 54.02°

At 25 cm: 255mm in diameter

At 50 cm: 510mm in diameter

At 100 cm: 1020mm in diameter

Installation height: 0-2meters

Wavelength, Output Power, Voltage and Size Customizable

Other parameters:

Working voltage: DC 2.8V to 5.2V (customizable)

Dimensions: 16*70mm (customizable)

Solid Circle Plane Homogenization DOE Laser Module 450nm

Lens angle: 53.1°

At 25 cm: 250mm in diameter

At 50 cm: 500mm in diameter

At 100 cm: 1000mm in diameter

Lens angle: 54.02°

At 25 cm: 255mm in diameter

At 50 cm: 510mm in diameter

At 100 cm: 1020mm in diameter

Warranty:

we offer one year limited warranty for our products. Damage due to misuse, Ill treatment and unauthorized modifications will beyond our warranty.

Payment Method:

PayPal ( PayPal fee should be afforded at buyer's side), Bank Transfer, Western Union, and Money Gram.

Shipping Method:

DHL/FEDEX/UPS/EMS/TNT Express service; Post Service

Product Tags:

Homogenization DOE Laser Module

Solid Circle Plane DOE Laser Module

DOE Laser Module 450nm DOE Laser Module
