40.6° Cross Belt Frame DOE Laser Module Positioning Projection Light

Name: 406 Cross Belt Frame DOE Laser Module Positioning Projection Light
Brand: xinland
Price: 1 USD

40.6° Cross Belt Frame DOE Laser Module Positioning Projection Light Manufactures

Brand Name : xinland

Model Number : DOE Laser Module

Certification : CE

Place of Origin : China

MOQ : 10pcs

Price : Negotiated

Payment Terms : T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50000pcs per months

Delivery Time : 5-8 work days

Packaging Details : 1pc carton

Product Type : DOE Laser Module

Lens Angle : 40.6°

Light Source : Red 100mW/Green 50mW/Blue 100mW

Wavelength : 650nm/520nm/450nm

Contact Now

40.6° Cross Belt Frame Laser Module Positioning Projection Light with Imported from Germany Grating Sheet Laser Diode

Light Spot 0.5 meters Details:

Lens angle: 40.6°
0.5m: Length (40.6°): 370mm
0.5m: Width (31.5°): 281mm
At 0.5m: Cross length (13°): 115mm
Wavelength, Output Power, Voltage and Size Customizable
Installation height 0 meters - 5 meters can be used

The intelligent driver board with imported IC can supply power in a wide range of 2.8-5.2V (other voltages can be customized)

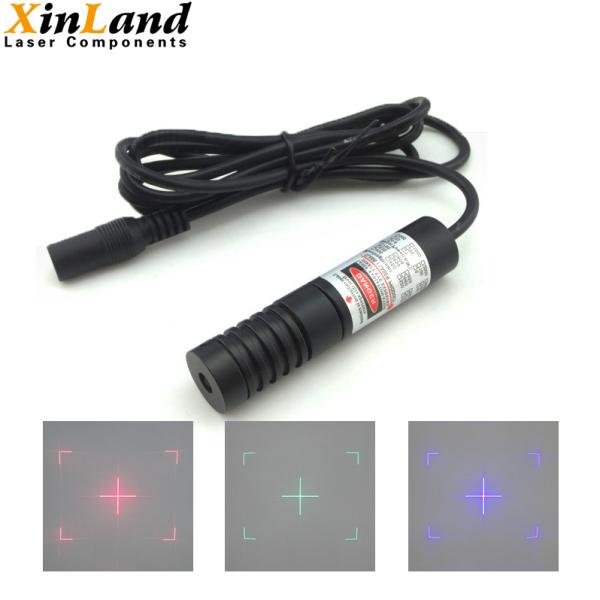

The whole set includes: Laser head + bracket + 2.8-5.2V adjustable power supply

40.6° Cross Belt Frame DOE Laser Module Positioning Projection Light

Name	Wavelength	Output Power	Voltage(V)	Electric Current	Size	Other Parameters
40.6° with Crossed Point Rectangle Red Laser	650nm	100mw	DC 2.8-5.2V	<500mA	Φ16x70mm	Lens angle: 40.6° Wavelength, Output Power, Voltage and Size Customizable Installation height 0 meters - 5 meters can be used
40.6° with Crossed Point Rectangle Green Laser	520nm	50mw	DC 2.8-5.2V	<500mA	Φ16x70mm
40.6° with Crossed Point Rectangle Blue Laser	450nm	100mw	DC 2.8-5.2V	<500mA	Φ16x70mm

40.6° Cross Belt Frame DOE Laser Module Positioning Projection Light

Warranty:

we offer one year limited warranty for our products. Damage due to misuse, Ill treatment and unauthorized modifications will beyond our warranty.

Payment Method:

PayPal ( PayPal fee should be afforded at buyer's side), Bank Transfer, Western Union, and Money Gram.

Shipping Method:

DHL/FEDEX/UPS/EMS/TNT Express service; Post Service
