Brand Name : Xinland
Model Number : XL-22B660-130-G
Certification : CE
Place of Origin : China
MOQ : 10pcs
Price : Negotiated
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 50000pcs per months
Packaging Details : 1pc/anti-static bag
Delivery Time : 5-8 work days
Wavelength : 650nm
Power : 100mw
Size : 22x55mm
Laser type : Semiconductor
Warranty : 6 months
Laser Color : Red
650nm 100mw 22x55mm Fat Wide Beam Red Laser LIght Bar light
Specifications:
Wavelength | 660nm |
Power | >100mw |
Part Number | XL-22B660-130-G |
Power Supply | 3.6V~4.2V(Can be used 1x18650 battery or 3.7 lithium battery) |
Operating current | 130mA |
Beam diameter | 14-16mm |
Dimension | 22×55mm |
Continuously work time | 24 hours |
Life time | 8000hrs |
Storage Temperature | -40℃~80℃ |
Applications:
Machine vision
Industrial inspection
Industrial marking devices
3D contour mapping
Positioning & visualization
Biomedical
High-end alignment
Laser targeting devices and so on..

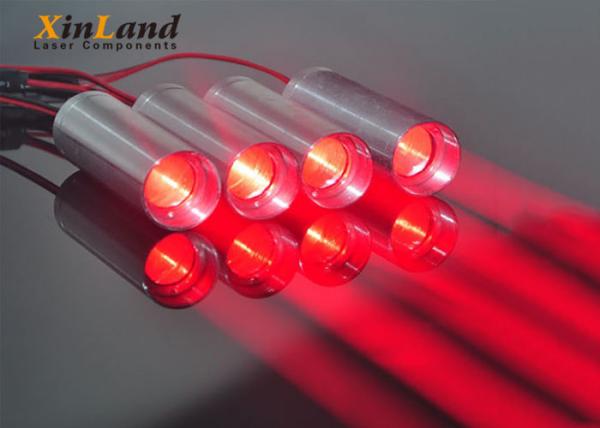

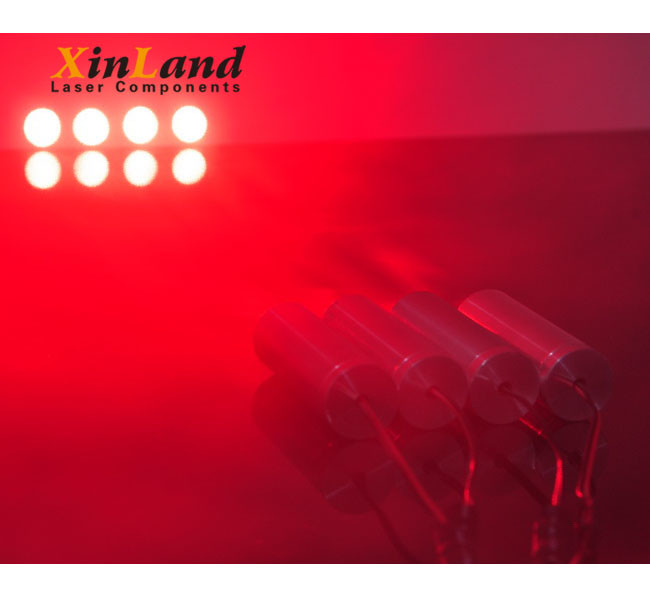

Product Photo:
![]() |
Fat Wide Beam Red Laser Module High Power Laser Module 100mw 22x55mm Images |
