Name: Incident Beam Laser Line Lens
Brand: Xinland
Price: 1 USD

Brand Name : Xinland

Model Number : Laser Lens

Certification : ce

Place of Origin : China

MOQ : 10pcs

Price : Negotiated

Payment Terms : T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50000pcs per months

Delivery Time : 5-8 work days

Packaging Details : 300pcs/carton

Usage : Optical

Structure : Plano-convex

Shape : Cylindrical

Beam diameter : 1mm 2mm 3mm upon request

Uniformity : >80%

Contact Now

2mm 3mmThickness Incident Beam Laser Line Optical Chemical Fiber Lens

Product description:

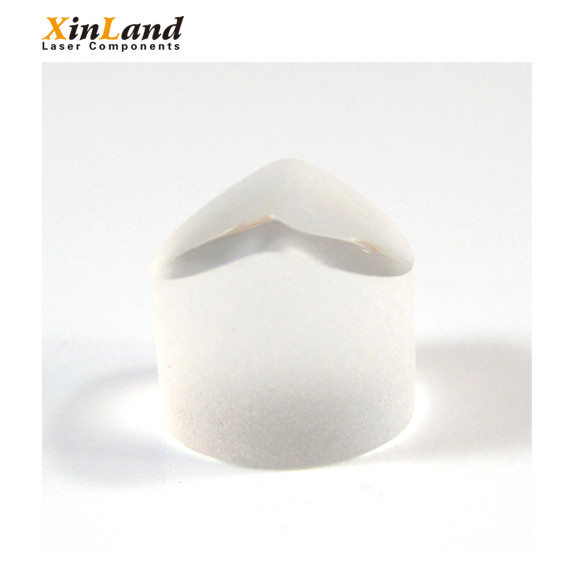

The Laser Line Generator Lenses (Powell Lens) is one kind of aspherical lens, which can

transform laser beam into a straight laser line. At present our Laser Line Generator

Lenses are available in fan angles of 5°,10°, 15°, 20°, 30°, 45°, 53°, 60°, 70°, 75°,

85° and 90° ,and the lenses are optimized for a Φ0.8mm, Φ1mm, Φ1.25mm, Φ1.5mm,

Φ2mm, Φ2.2mm, Φ2.6mm, Φ3mm, Φ3.6mm, Φ4mm and Φ5mm input laser beam

diameter.

These lenses offer excellent overall stability and line quality. They outperform

cylindrical lenses that generate Gaussian beam profiles with hot-spot center points and

fading edges.

2-3mm Thickness Incident Beam Laser Line Optical Chemical Fiber Lens Catalog :

Product Details:

Product Tags:

2mm Laser Line Generator Lens
